A lumbar puncture (LP), commonly known as a spinal tap, is a medical procedure used to collect cerebrospinal fluid (CSF) from the subarachnoid space of the spinal canal. The procedure is widely used in neurology, infectious disease, emergency medicine, and critical care to diagnose or treat conditions affecting the central nervous system (CNS).
Lumbar puncture allows physicians to measure CSF pressure, analyze the chemical composition of CSF, and detect infections, bleeding, or inflammatory diseases.
Anatomy Relevant to Lumbar Puncture
Anatomical structures involved
Vertebrae

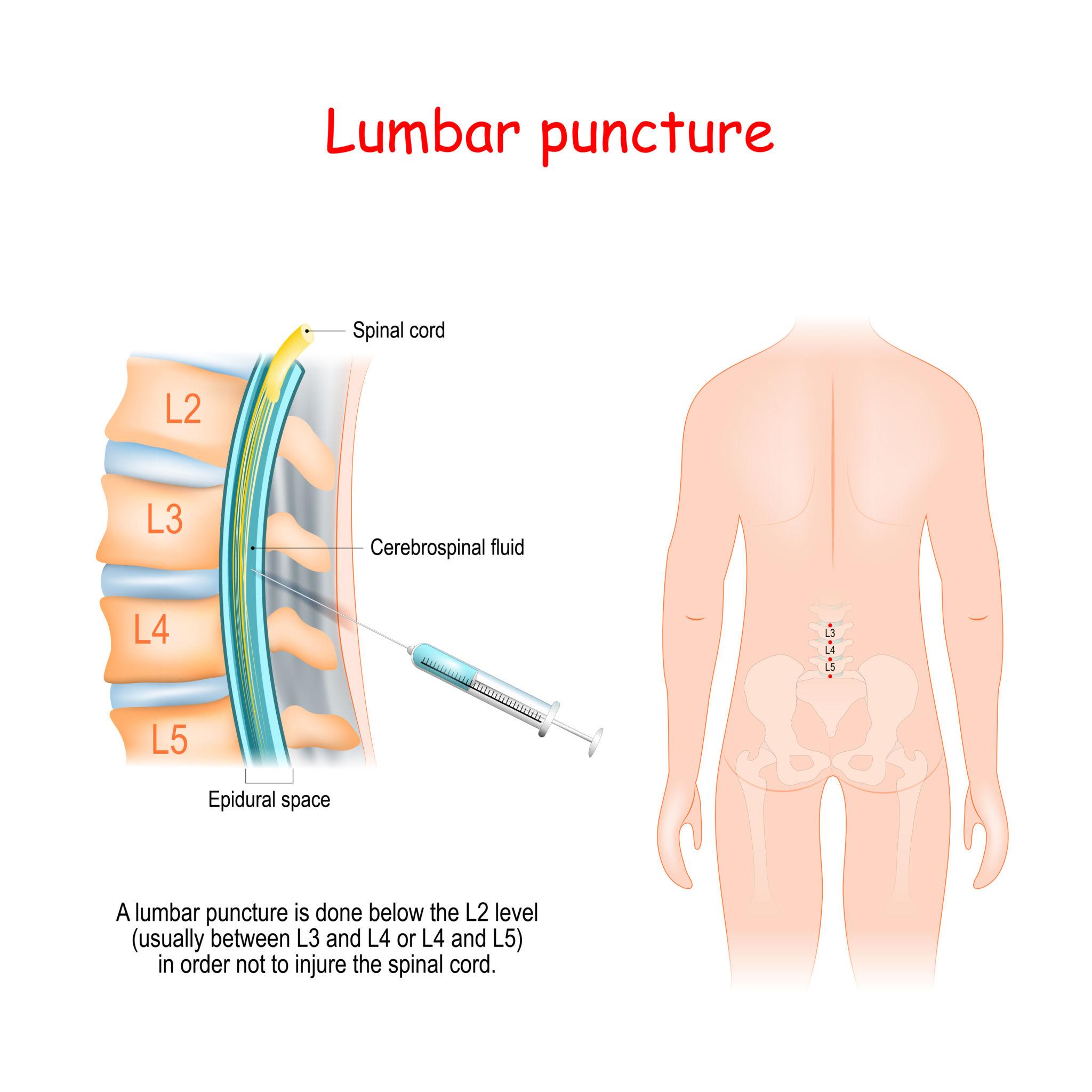

The spinal column consists of vertebrae. Lumbar puncture is usually performed at the L3–L4 or L4–L5 intervertebral space because the spinal cord typically ends at L1–L2 in adults, making this region safer.
Spinal Cord and Cauda Equina
Below the termination of the spinal cord lies the cauda equina, a bundle of nerve roots floating in CSF. These nerves move away from the needle, reducing injury risk.
Meninges
The spinal cord is surrounded by three protective membranes:
Dura mater – outer tough layer
Arachnoid mater – middle membrane
Pia mater – inner delicate layer
CSF is located in the subarachnoid space between the arachnoid and pia mater.
Indications for Lumbar Puncture
Lumbar puncture is performed for both diagnostic and therapeutic purposes.
• Administration of spinal anesthesia • Intrathecal chemotherapy • Intrathecal antibiotics • Reduction of CSF pressure in pseudotumor cerebri

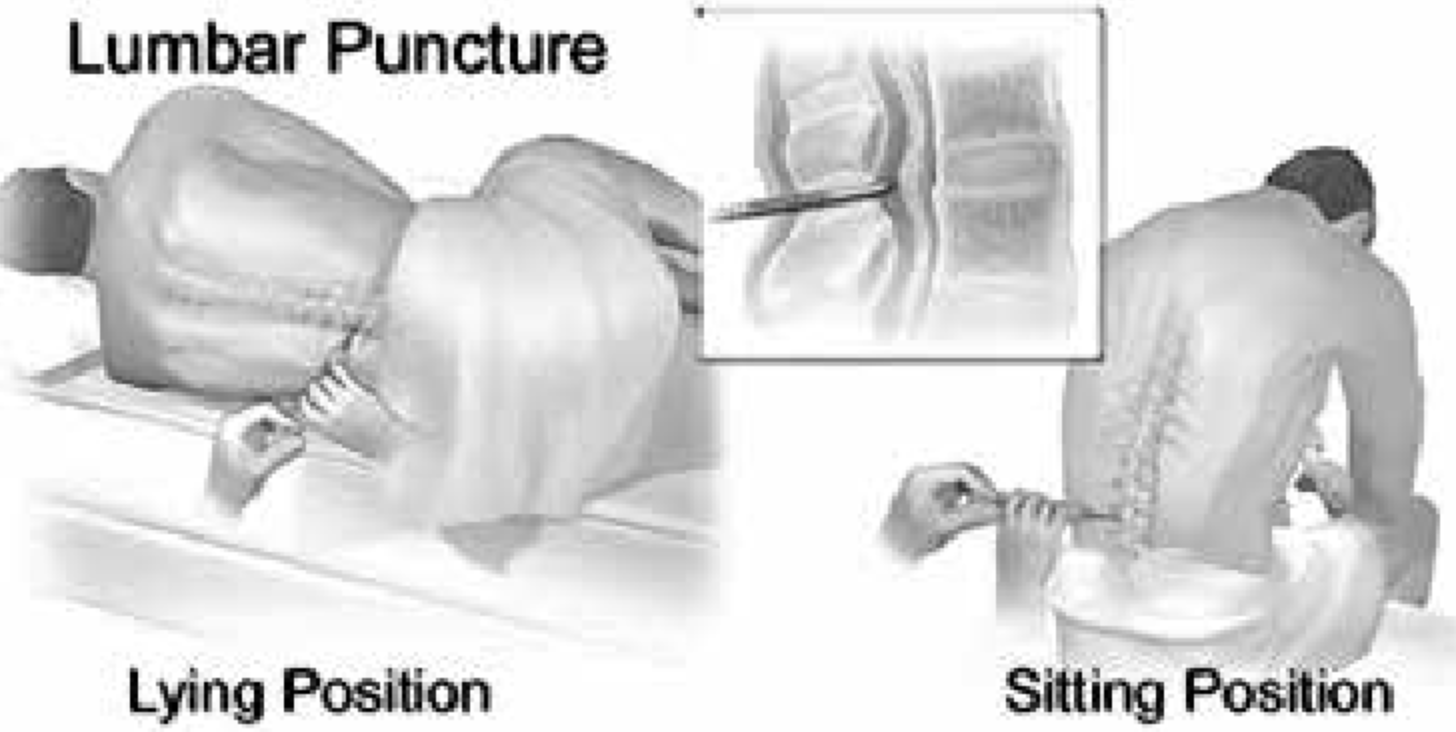

Patient Positioning
Two positions are commonly used:

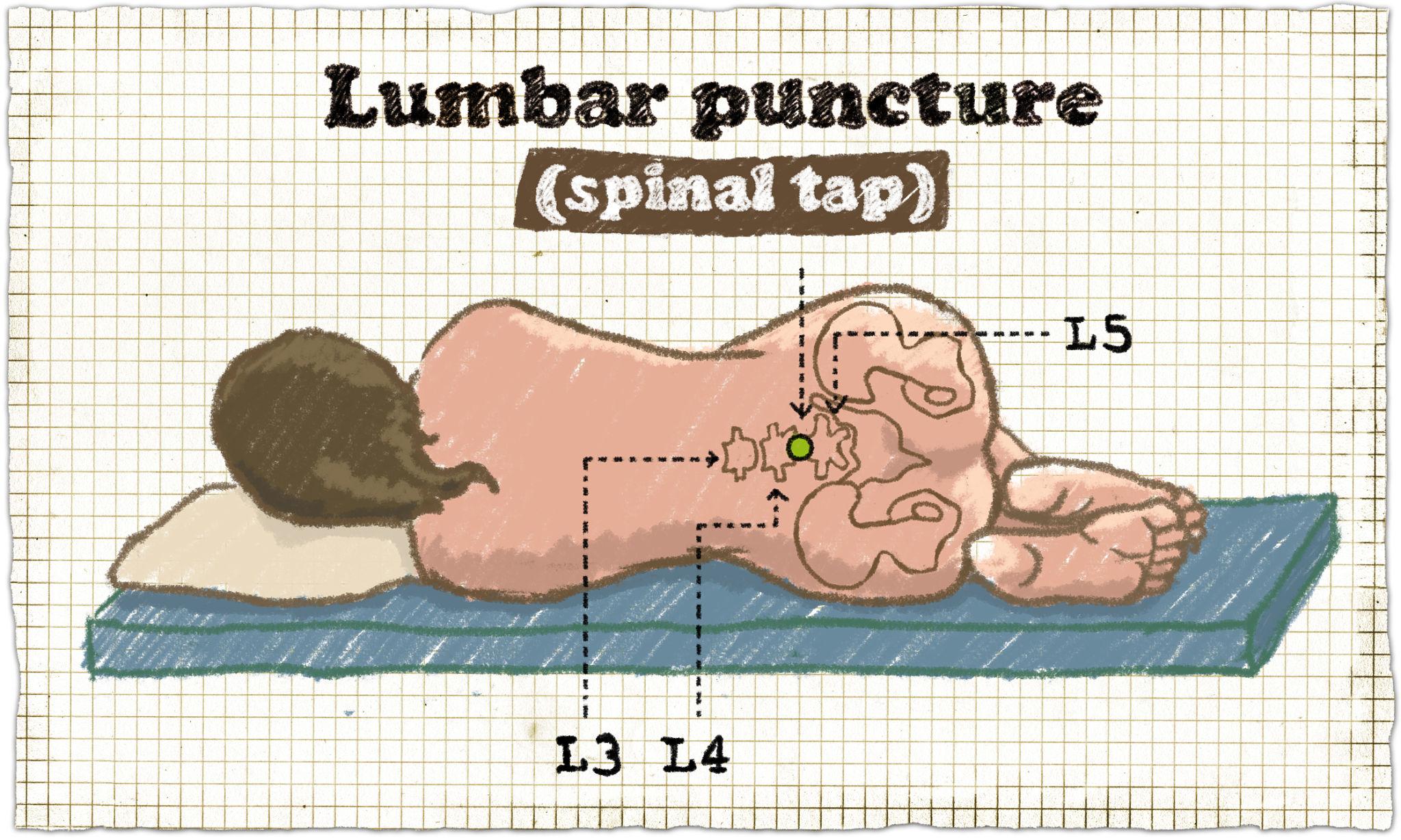

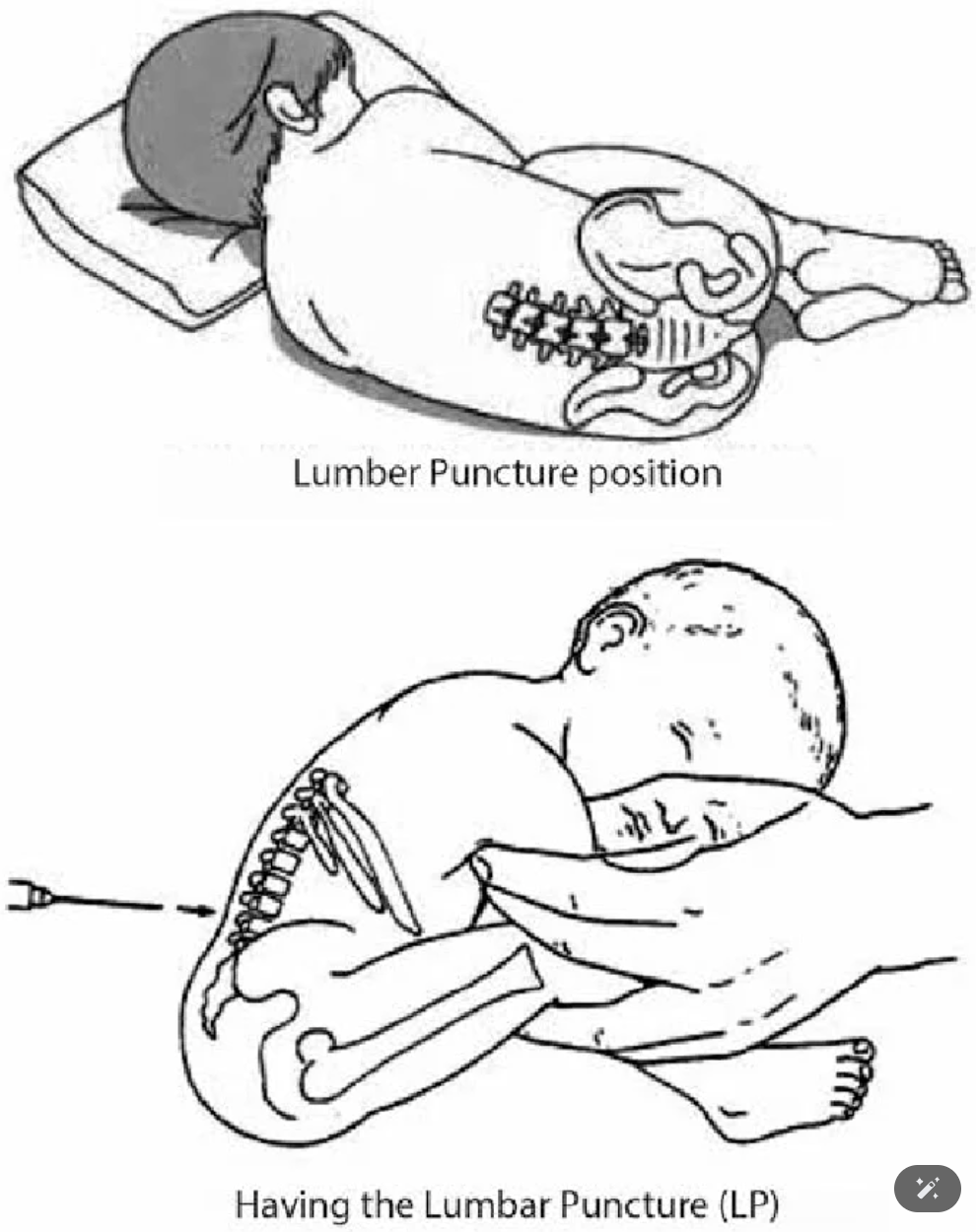

1. Lateral Decubitus Position
The patient lies on their side with:
Knees drawn toward the chest
Chin flexed toward the chest
This position widens the spaces between vertebrae.
2. Sitting Position
The patient sits leaning forward with the spine flexed. This position is sometimes used when it is difficult to identify landmarks.
Step-by-Step Procedure

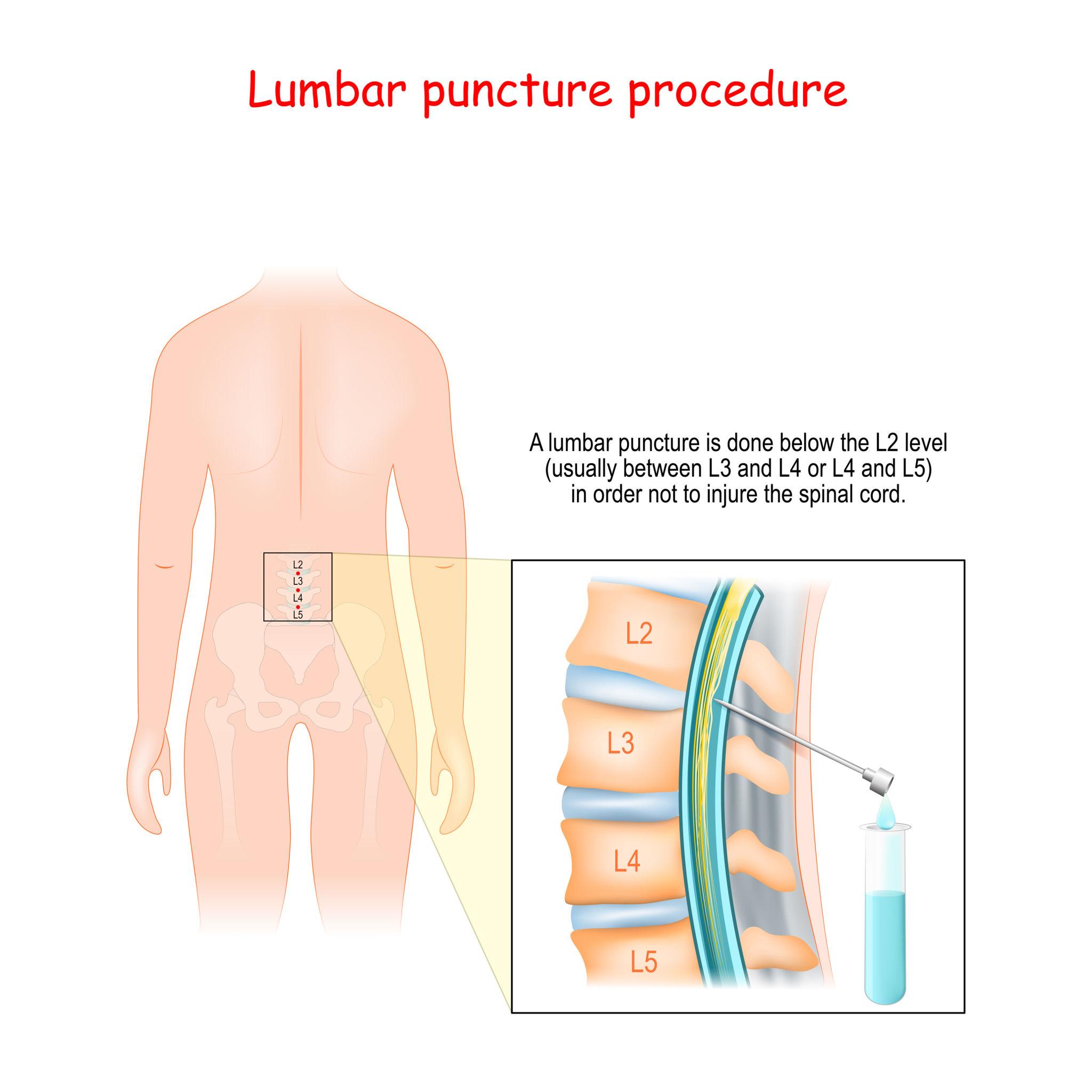

Step 1: Identify Landmarks
The needle is inserted at L3–L4 or L4–L5. A useful landmark is Tuffier’s line, which connects the highest points of the iliac crests and crosses the L4 vertebral level.
Step 2: Sterilization
The skin is cleaned with antiseptic solution and sterile drapes are applied.
Step 3: Local Anesthesia
A local anesthetic such as lidocaine is injected into the skin and deeper tissues.

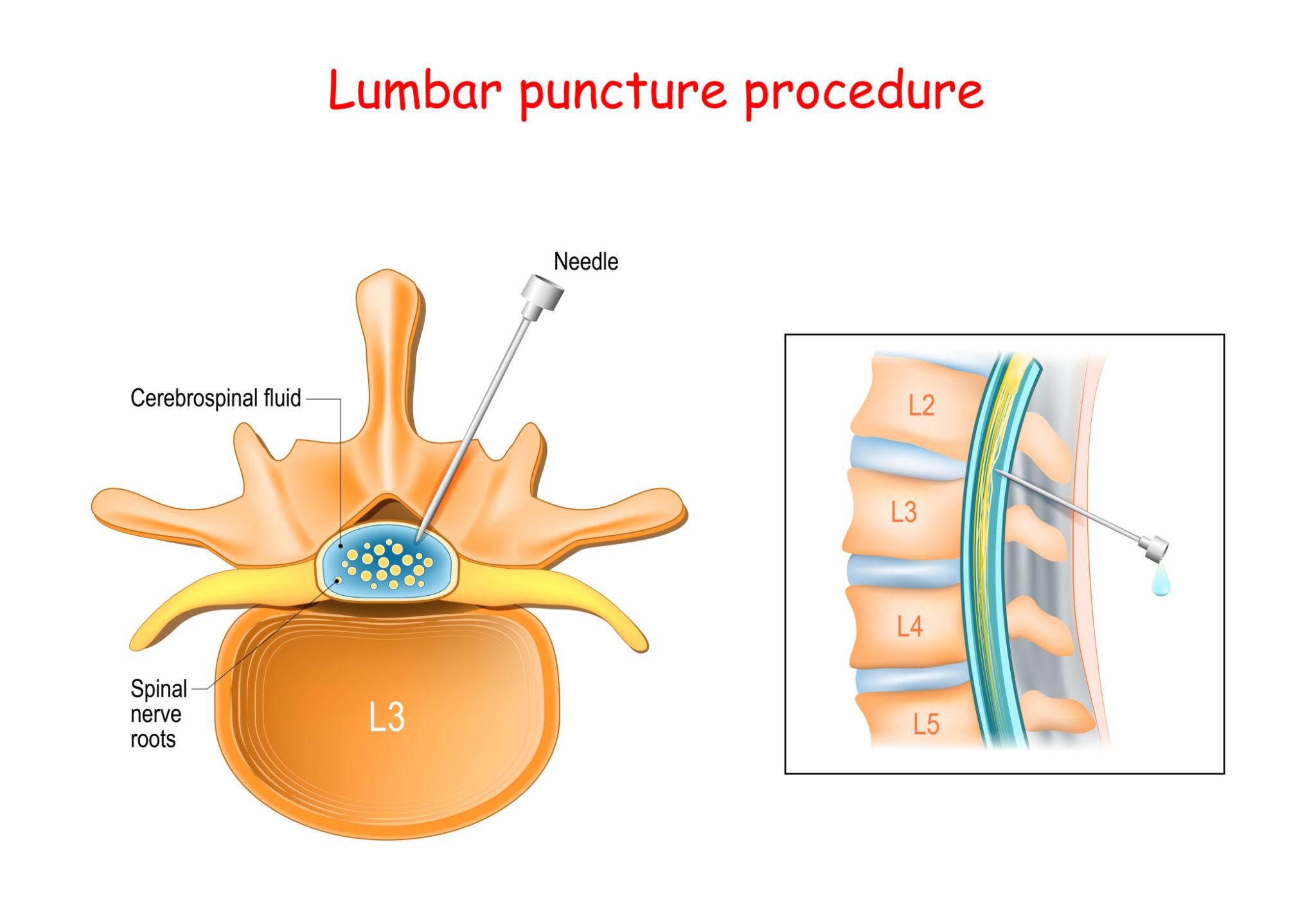

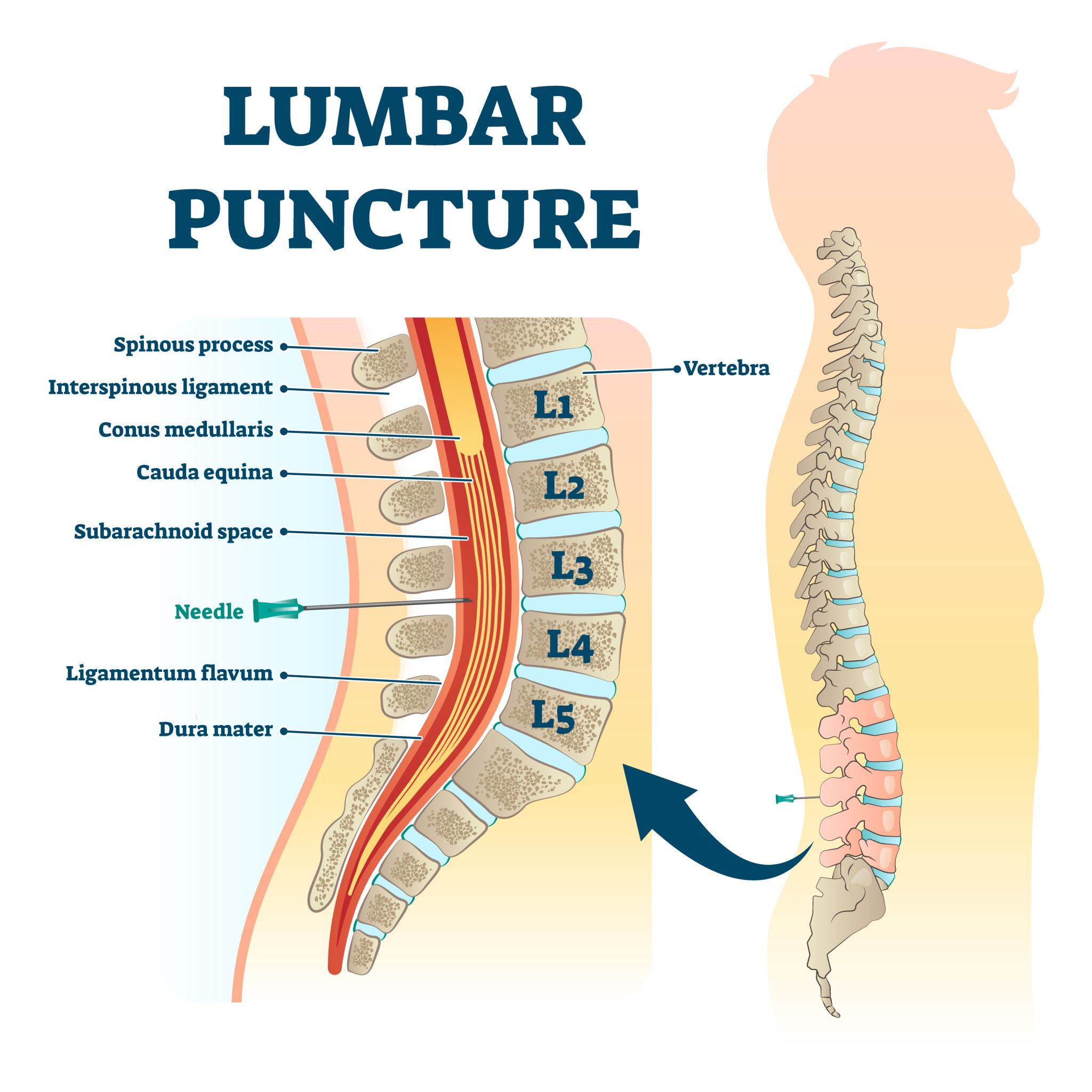

Step 4: Needle Insertion
A spinal needle is inserted through the following layers:
Skin
Subcutaneous tissue
Supraspinous ligament
Interspinous ligament
Ligamentum flavum
Epidural space
Dura mater
Arachnoid mater
Once the needle enters the subarachnoid space, CSF begins to flow.
Step 5: Measure Opening Pressure
A manometer may be attached to measure CSF opening pressure.
Step 6: CSF Collection
CSF is collected in sterile tubes for laboratory analysis.
Cerebrospinal Fluid Analysis
CSF samples are typically sent for:
• Cell count • Protein levels • Glucose levels • Gram stain and culture • PCR testing for viruses • Oligoclonal bands (multiple sclerosis)
Normal CSF Values
Parameter
Normal Value
Opening Pressure
10–20 cm H₂O
WBC
0–5 cells/mm³
Protein
15–45 mg/dL
Glucose
50–80 mg/dL
Contraindications
Lumbar puncture should not be performed if the patient has:
• Signs of increased intracranial pressure with mass lesion • Local skin infection at the puncture site • Severe bleeding disorders • Spinal deformities or trauma
In such cases, imaging such as CT scan or MRI should be done first.
Complications of Lumbar Puncture
Possible complications include:
Post-Lumbar Puncture Headache
The most common complication caused by CSF leakage.
Back Pain
Mild localized pain at the puncture site.
Bleeding
Rare but possible in patients with clotting disorders.
Infection
Extremely rare with proper sterile technique.
Nerve Root Irritation
Temporary shooting pain down the leg if the needle touches a nerve root.
Post-Procedure Care
After the procedure:
• The patient should lie flat for 1–2 hours • Adequate hydration is recommended • Monitor for headache or neurological symptoms
Clinical Significance
Lumbar puncture is a critical diagnostic tool in medicine. It helps physicians rapidly diagnose life-threatening conditions such as bacterial meningitis, intracranial hemorrhage, and inflammatory neurological diseases.
For medical students, mastering the anatomy, indications, and technique of lumbar puncture is essential for clinical practice.
Conclusion
Lumbar puncture is a safe and effective procedure when performed correctly. By accessing the cerebrospinal fluid, clinicians can obtain valuable diagnostic information about diseases affecting the brain and spinal cord.
Understanding the procedure, anatomy, and possible complications is essential for all healthcare professionals involved in neurological care.
Call Now
Lumbar Puncture (Spinal Tap)
Introduction
A lumbar puncture (LP), commonly known as a spinal tap, is a medical procedure used to collect cerebrospinal fluid (CSF) from the subarachnoid space of the spinal canal. The procedure is widely used in neurology, infectious disease, emergency medicine, and critical care to diagnose or treat conditions affecting the central nervous system (CNS).
Lumbar puncture allows physicians to measure CSF pressure, analyze the chemical composition of CSF, and detect infections, bleeding, or inflammatory diseases.
Anatomy Relevant to Lumbar Puncture
Anatomical structures involved
Vertebrae
The spinal column consists of vertebrae. Lumbar puncture is usually performed at the L3–L4 or L4–L5 intervertebral space because the spinal cord typically ends at L1–L2 in adults, making this region safer.
Spinal Cord and Cauda Equina
Below the termination of the spinal cord lies the cauda equina, a bundle of nerve roots floating in CSF. These nerves move away from the needle, reducing injury risk.
Meninges
The spinal cord is surrounded by three protective membranes:
Dura mater – outer tough layer
Arachnoid mater – middle membrane
Pia mater – inner delicate layer
CSF is located in the subarachnoid space between the arachnoid and pia mater.
Indications for Lumbar Puncture
Lumbar puncture is performed for both diagnostic and therapeutic purposes.
Diagnostic indications
• Suspected meningitis
• Suspected encephalitis
• Subarachnoid hemorrhage (when CT scan is negative)
• Multiple sclerosis
• Guillain–Barré syndrome
• CNS malignancy
• Measurement of intracranial pressure
Therapeutic indications
• Administration of spinal anesthesia
• Intrathecal chemotherapy
• Intrathecal antibiotics
• Reduction of CSF pressure in pseudotumor cerebri
Patient Positioning
Two positions are commonly used:
1. Lateral Decubitus Position
The patient lies on their side with:
Knees drawn toward the chest
Chin flexed toward the chest
This position widens the spaces between vertebrae.
2. Sitting Position
The patient sits leaning forward with the spine flexed. This position is sometimes used when it is difficult to identify landmarks.
Step-by-Step Procedure
Step 1: Identify Landmarks
The needle is inserted at L3–L4 or L4–L5.
A useful landmark is Tuffier’s line, which connects the highest points of the iliac crests and crosses the L4 vertebral level.
Step 2: Sterilization
The skin is cleaned with antiseptic solution and sterile drapes are applied.
Step 3: Local Anesthesia
A local anesthetic such as lidocaine is injected into the skin and deeper tissues.
Step 4: Needle Insertion
A spinal needle is inserted through the following layers:
Skin
Subcutaneous tissue
Supraspinous ligament
Interspinous ligament
Ligamentum flavum
Epidural space
Dura mater
Arachnoid mater
Once the needle enters the subarachnoid space, CSF begins to flow.
Step 5: Measure Opening Pressure
A manometer may be attached to measure CSF opening pressure.
Step 6: CSF Collection
CSF is collected in sterile tubes for laboratory analysis.
Cerebrospinal Fluid Analysis
CSF samples are typically sent for:
• Cell count
• Protein levels
• Glucose levels
• Gram stain and culture
• PCR testing for viruses
• Oligoclonal bands (multiple sclerosis)
Normal CSF Values
Contraindications
Lumbar puncture should not be performed if the patient has:
• Signs of increased intracranial pressure with mass lesion
• Local skin infection at the puncture site
• Severe bleeding disorders
• Spinal deformities or trauma
In such cases, imaging such as CT scan or MRI should be done first.
Complications of Lumbar Puncture
Possible complications include:
Post-Lumbar Puncture Headache
The most common complication caused by CSF leakage.
Back Pain
Mild localized pain at the puncture site.
Bleeding
Rare but possible in patients with clotting disorders.
Infection
Extremely rare with proper sterile technique.
Nerve Root Irritation
Temporary shooting pain down the leg if the needle touches a nerve root.
Post-Procedure Care
After the procedure:
• The patient should lie flat for 1–2 hours
• Adequate hydration is recommended
• Monitor for headache or neurological symptoms
Clinical Significance
Lumbar puncture is a critical diagnostic tool in medicine. It helps physicians rapidly diagnose life-threatening conditions such as bacterial meningitis, intracranial hemorrhage, and inflammatory neurological diseases.
For medical students, mastering the anatomy, indications, and technique of lumbar puncture is essential for clinical practice.
Conclusion
Lumbar puncture is a safe and effective procedure when performed correctly. By accessing the cerebrospinal fluid, clinicians can obtain valuable diagnostic information about diseases affecting the brain and spinal cord.
Understanding the procedure, anatomy, and possible complications is essential for all healthcare professionals involved in neurological care.
